SPECIFICATIONS

Weight: 1.9KG

Waveform: Pure sine wave

Type: DC/AC Inverters

Size: 27*15*6cm

Rated power: 1000W

Output Type: Single

Output Power: 500 - 1000W

Output Frequency: 50HZ

Model Number: E19221010RXEU0V3

Frequency: 50Hz

Efficiency: 90%

DC Input: 12V

Certification: RoHS

Certification: CE

Brand Name: EDECOA

AC Output: 220V 230V 240V

Features

- High quality DC to AC pure sine wave.

- The main control chip adopts high-speed and stable MCU, intelligent control, real-time monitoring, AC output frequency is more accurate, and the work is more stable.

- With bipolar SPWM drive, the output sinusoidal waveform is more accurate and the inductive load capacity is stronger.

- Multiple protection functions: input low voltage shutdown protection, input high voltage shutdown protection, battery high and low voltage alarm, overload protection, output short circuit protection, overheating protection.

- Automatic reset function: After input high voltage or low voltage shutdown, when the input voltage returns to normal, the inverter will automatically restore the output voltage.

- Soft start function, it is easier to run inductive and capacitive loads.

- Buzzer reminder device, once the protection of the inverter is triggered, the buzzer sounds an alarm to remind people.

- Anodized aluminum case, which not only has a beautiful appearance, but also has good heat dissipation performance, wear resistance, insulation, and durability.

- Dual intelligent temperature control fan to reduce unnecessary waste of battery power; When the internal temperature of the inverter is ≥45±5°C, the fan starts to work.

- Screw terminal. Pluggable plug for easy cable replacement.

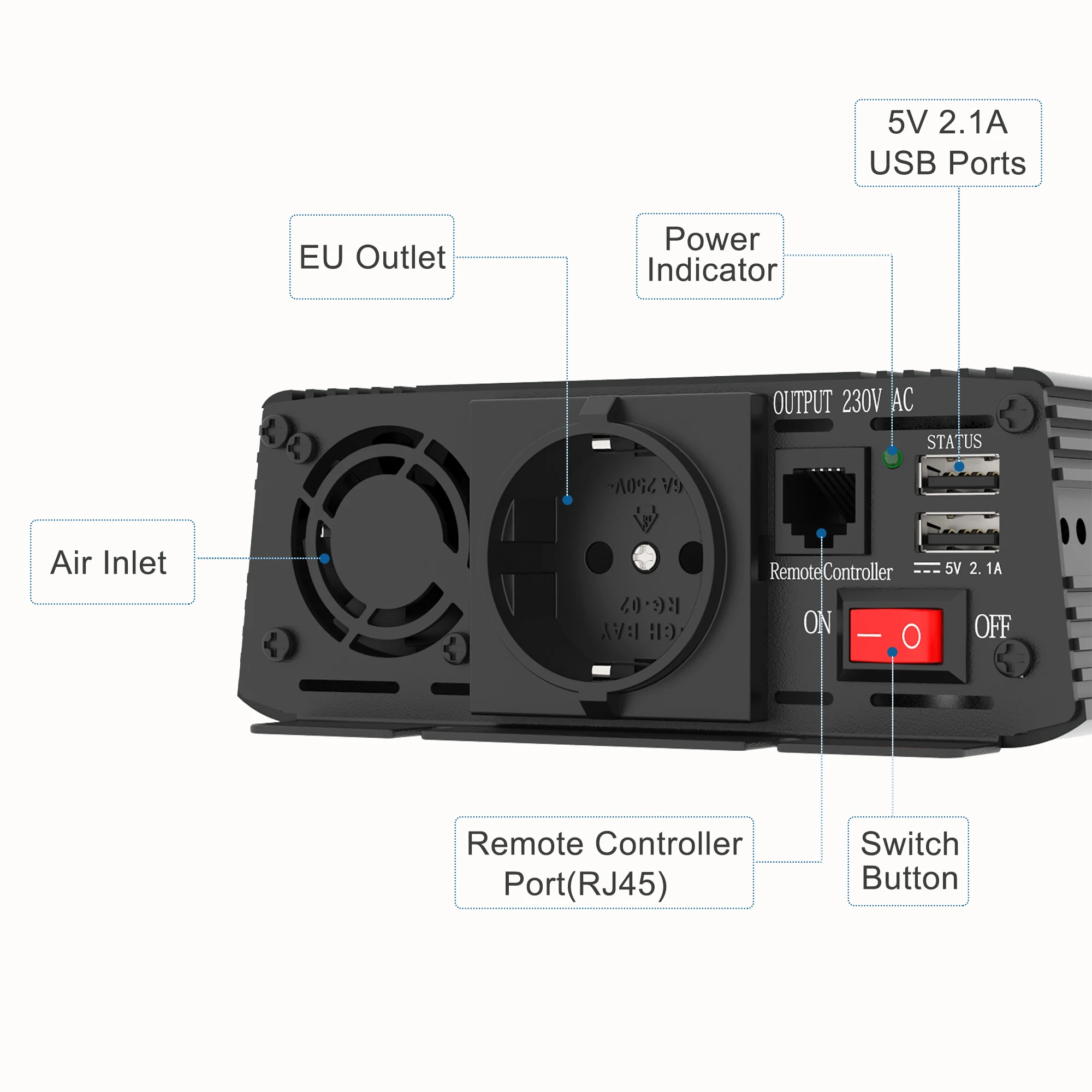

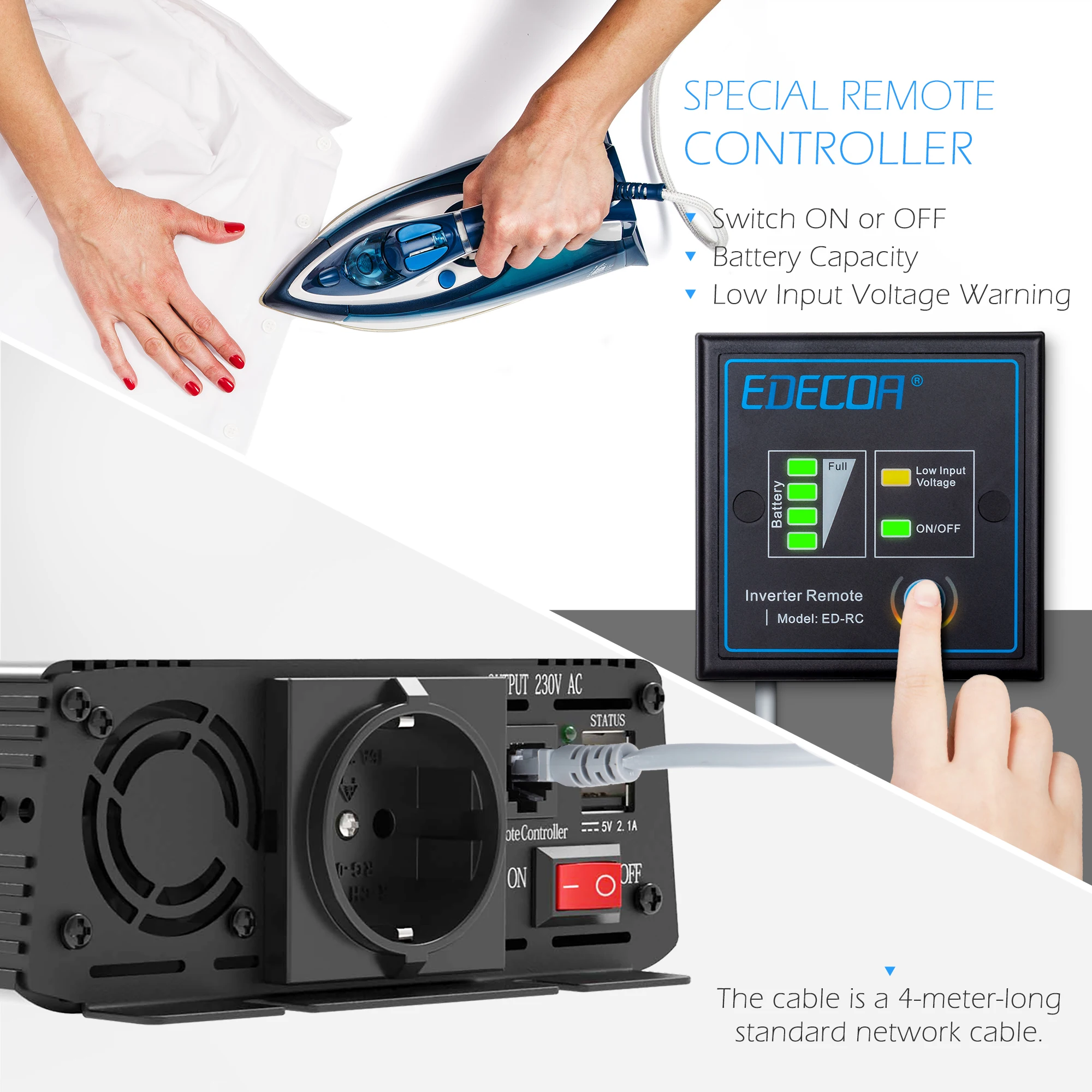

- Remote control function, can display battery power, battery low-voltage alarm, the switch button can turn on/off the inverter, the remote control port is standard RJ45, you can replace longer cable to increase remote control distance.

- Dual USB ports, output voltage 5V, maximum current 2.1A, can charge mobile phones and tablets.
